Canīt find MAF Sensor location

  #1
Old 07-02-2019, 04:16 PM
Junior Member
Thread Starter
Join Date: Jul 2019
Location: Sweden
Posts: 5
Default Canīt find MAF Sensor location

I have a hard time locating the MAF Sensor on my Mini Cooper. I have a 2007 base model hatchback R56, N12B16 engine. I want to take it off, so I can clean it. Can someone help me locate it? I added a picture of the engine bay (not my car, but same engine).

1.Is this where it is located?? I canīt see any connector to a MAF Sensor here, if itīs here itīs not visible.

2. Can it be located on this side? What is this box?

Appreciate the help!

/Lennie


  #2
Old 07-03-2019, 11:59 AM
Junior Member
Join Date: Mar 2019
Posts: 5
Default

Follow the tube that connects to box #2 in your picture. It should exit towards the back of the box #2 and connect to #1 in the picture somewhere. You are in Sweden so its a little different from the ones in the US.

Also if you can take a picture right above #1 we should be able to see where it connects.

  #3
Old 07-03-2019, 02:26 PM
Junior Member
Thread Starter
Join Date: Jul 2019
Location: Sweden
Posts: 5
Default

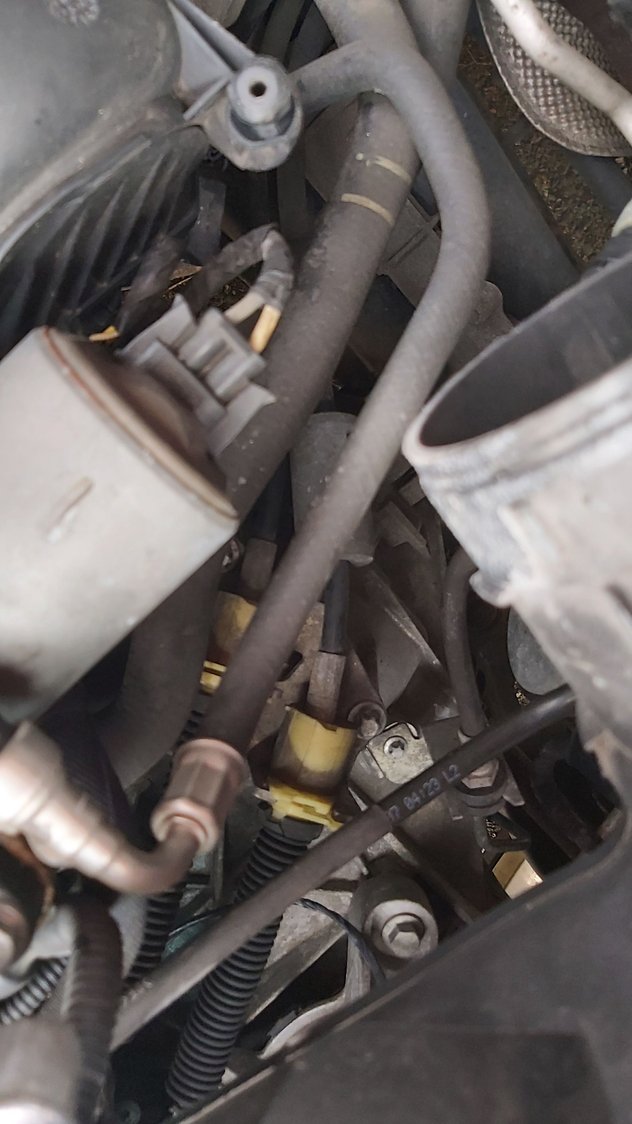

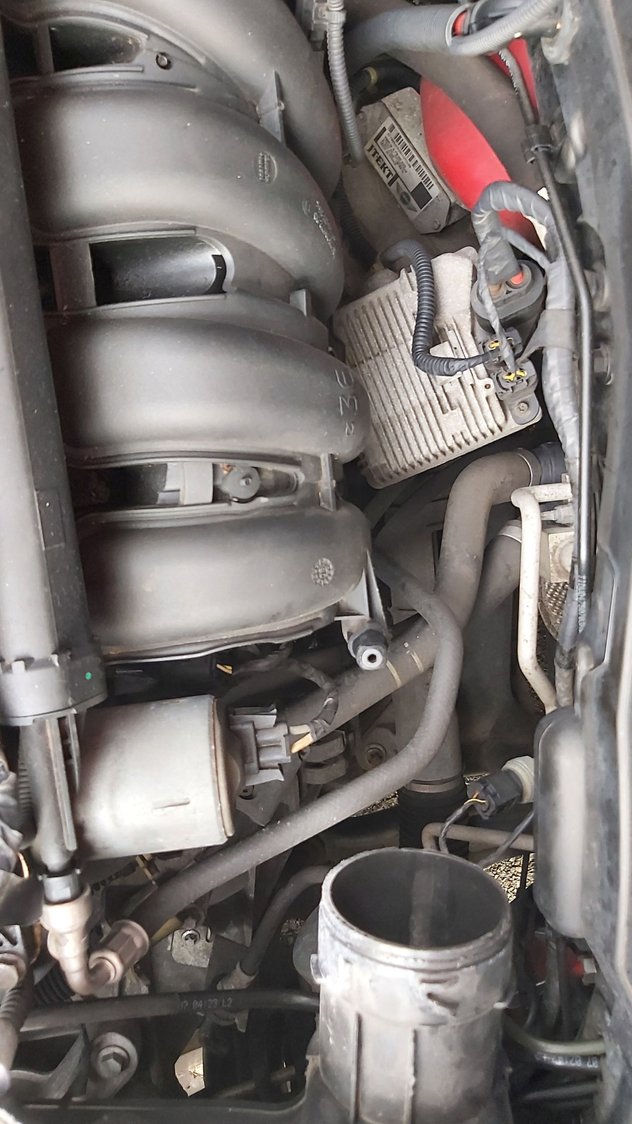

Okay, here is a couple of pictures. I have numbered them 1 and 2 based on the info in the first picture from my first post in the thread.









  #4
Old 07-03-2019, 02:57 PM
Junior Member
Join Date: Mar 2019
Posts: 5
Default

It will be after the air filter. Open up the #2 box and see it you see it connected to the back of the box, facing the firewall.

  #5
Old 07-03-2019, 05:00 PM
Junior Member
Thread Starter
Join Date: Jul 2019
Location: Sweden
Posts: 5
Default

Do you mean after the air filter box on the left side of the car? The tube that goes straight down to the ground from the air filter box? Or do you mean the right side box just before the air filter box?
