Trunk Latch Wiring - 2012 R60 Countryman S
#1
Trunk Latch Wiring - 2012 R60 Countryman S
My trunk latch recently stopped working, and when disassembling it, I ripped the wires. I got a new wiring assembly, but the colors do not match the existing wires and I did not keep the original part. My bad! Anyways, does anyone have a picture of what this looks like so I can match the wires up correctly? Even a diagram would be helpful if it shows the colors in the right order.

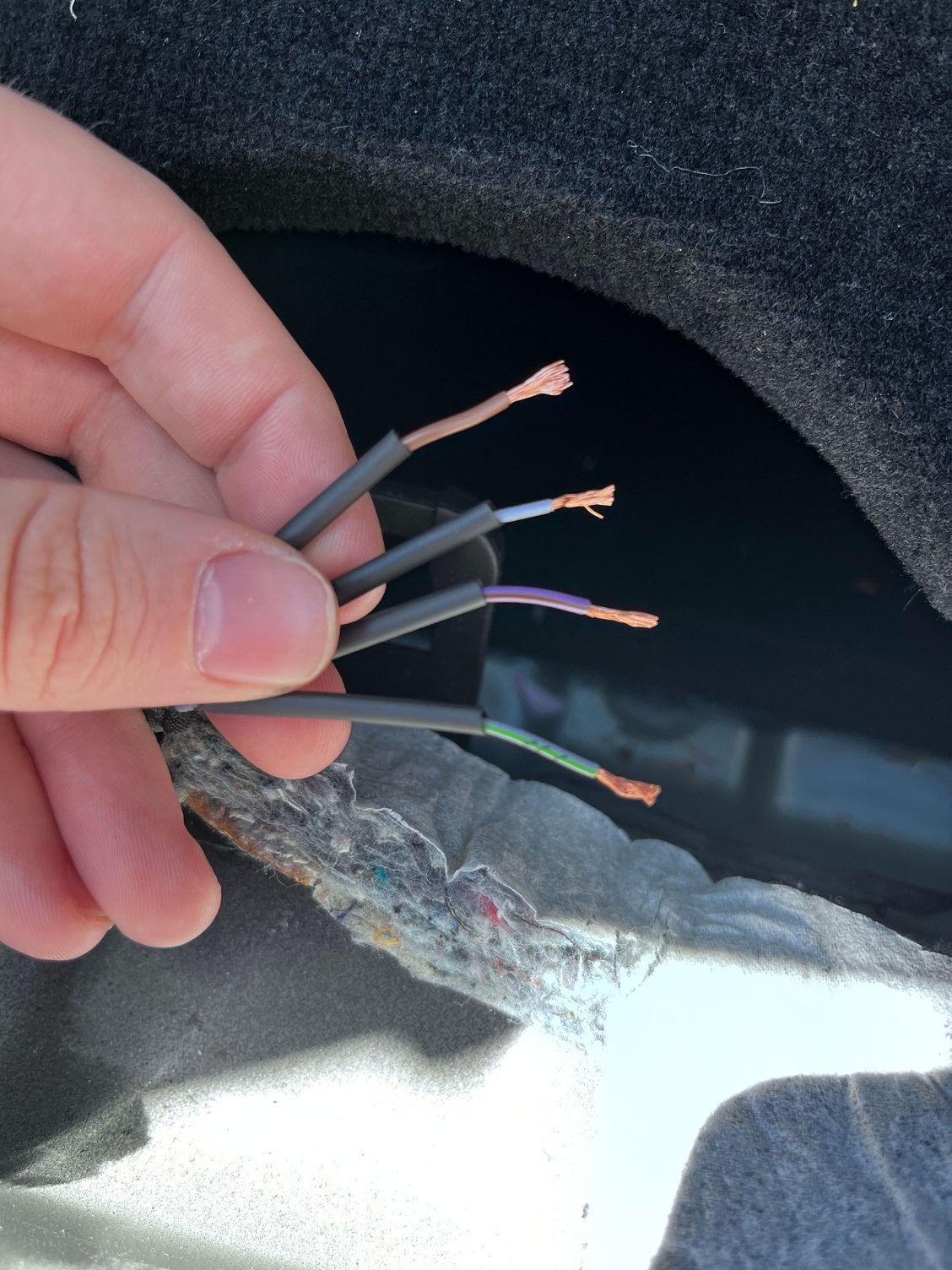

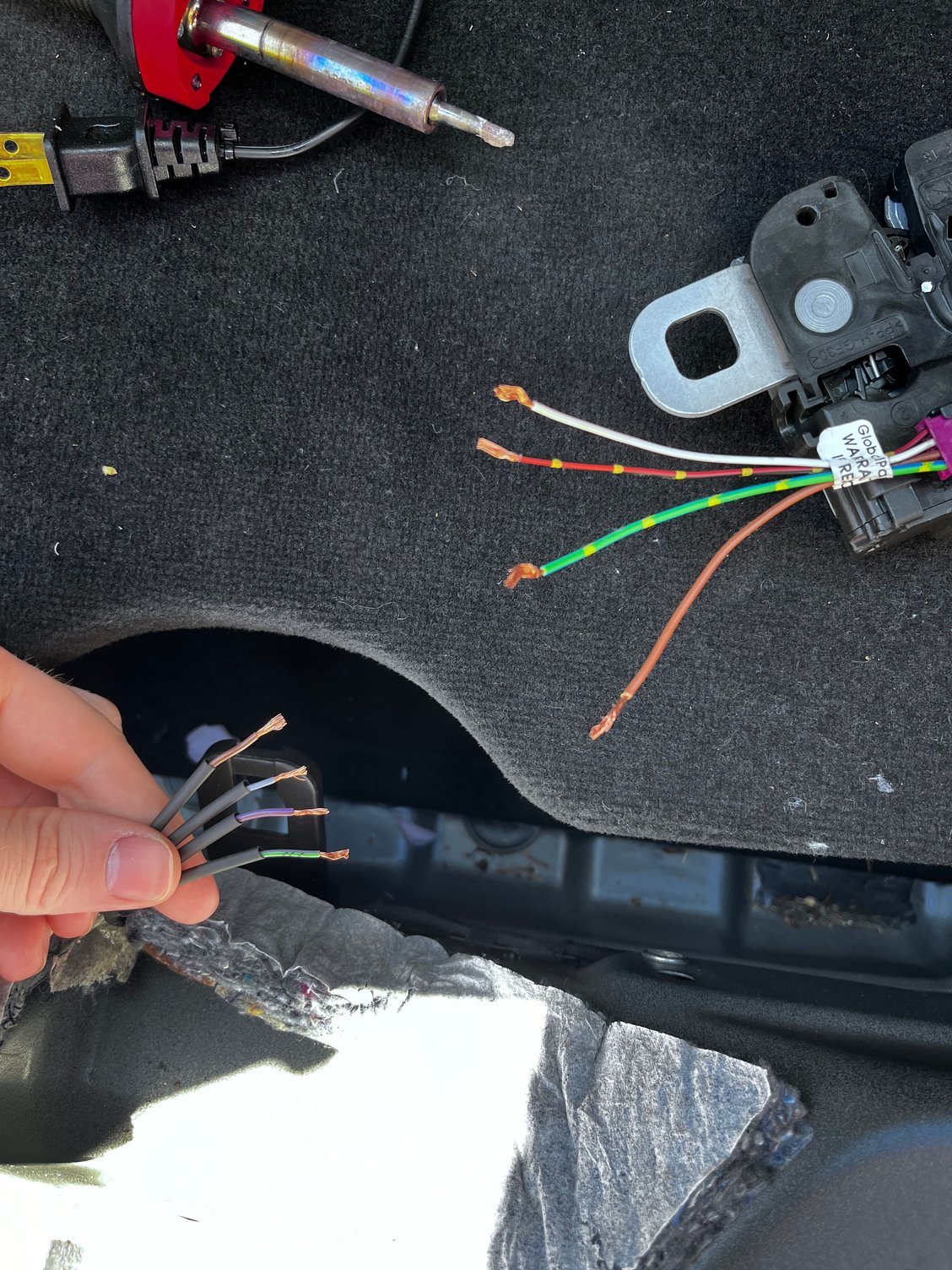

Adding some pictures for reference.
Adding some pictures for reference.
